YYK Compatible Color LCD Display with Button Control
LCD Display is compatible with our YYK high speed controllers
However, do take note that these displays only display up to 99kmh.
There are 2 models: one with only a display screen to display speed and battery indicator, and the other, a LCD display with button control is able to have on/off function, lighting control, battery indicator, and gear selection.
[product_description]
Do note that this will not fit ANY controller as it is specially customized for the YYK range of controllers.

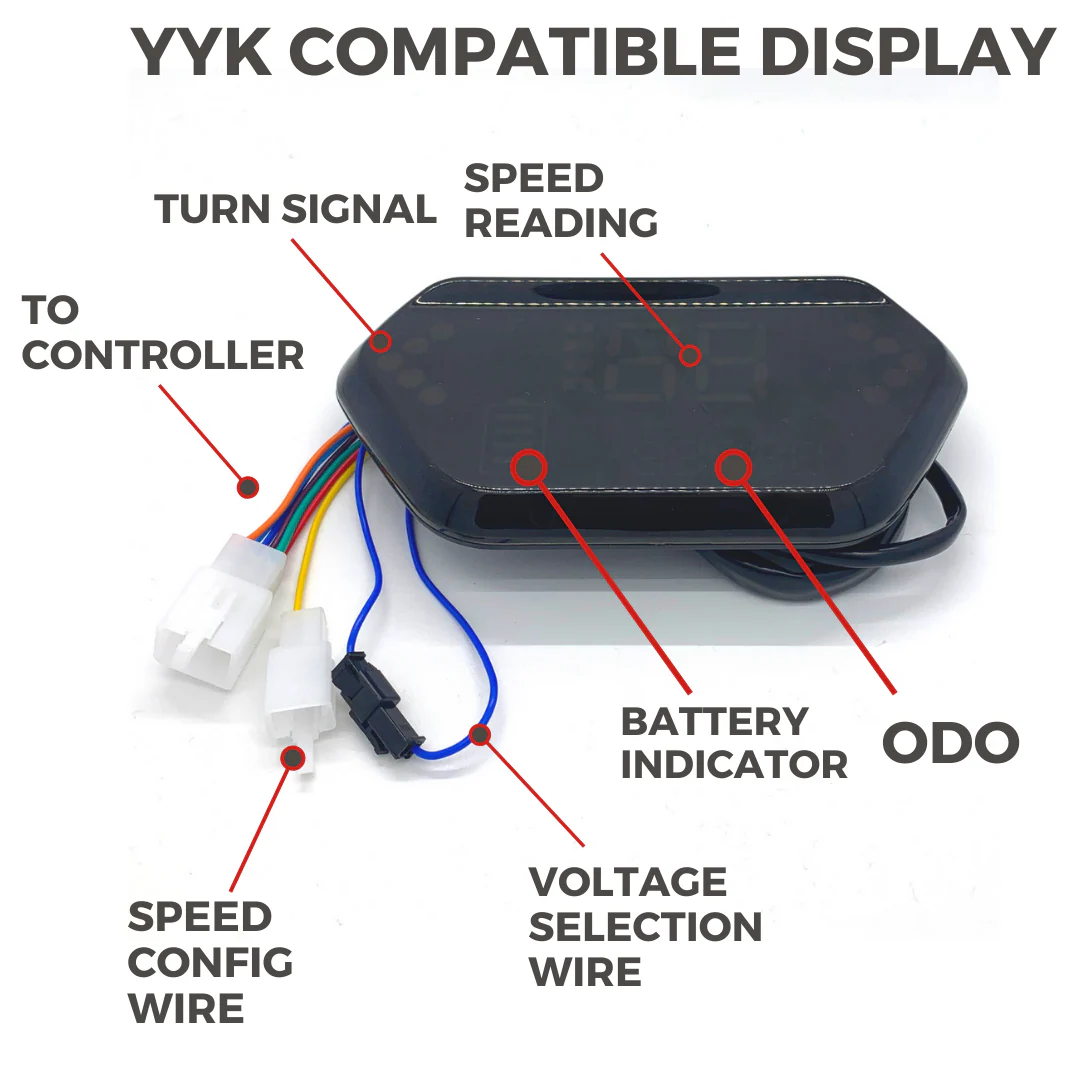

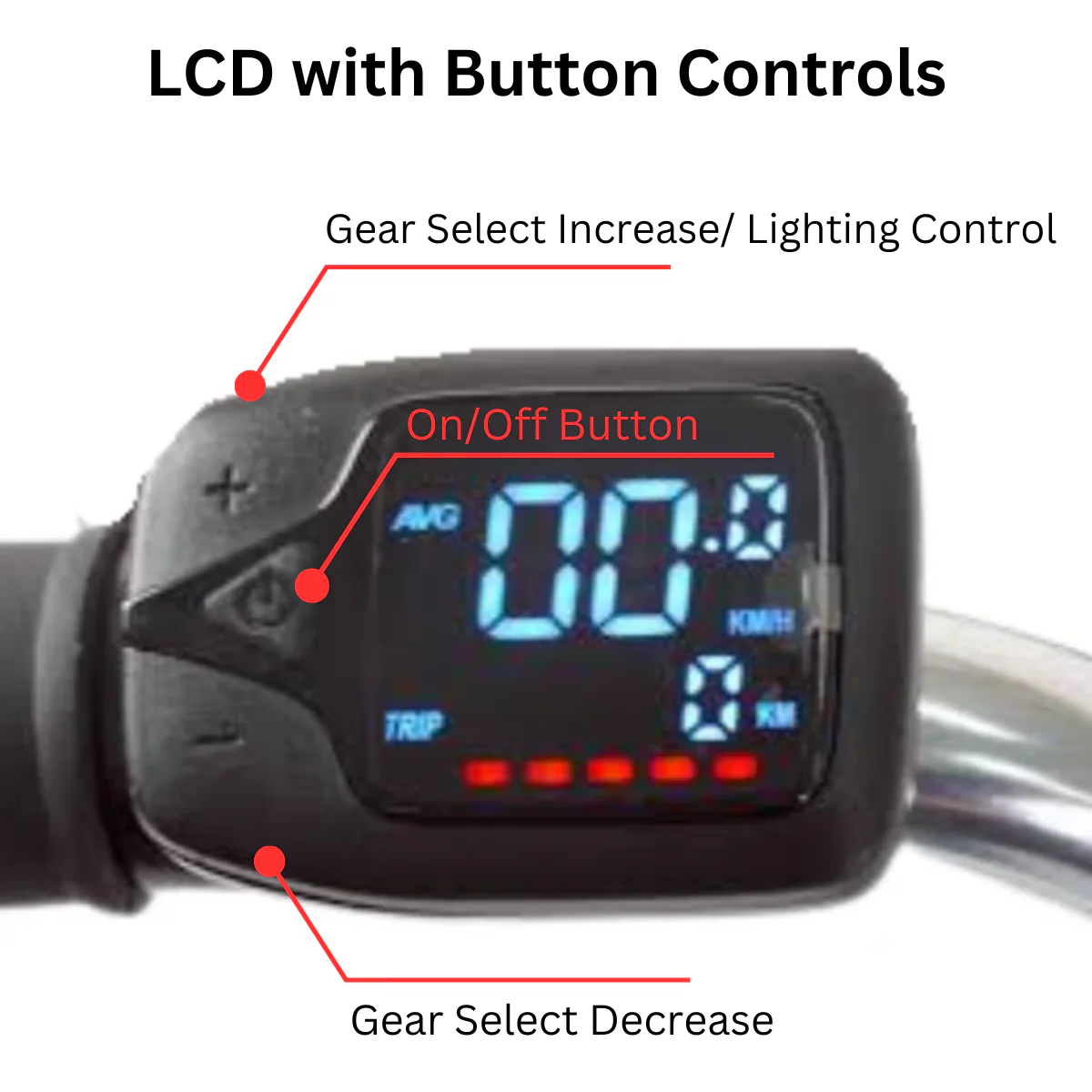

This is how the LCD with button controls work with the ZL or YYK Controller:
Specifications:
| Dimension | 11 x 6.5 cm (screen size 7.6 x 5.3cm) |
| Functions | Speedo, Odometer, Battery Indicator, Left and Right Turn Signal (Not used) |
| Operating Voltage | 48V-72V |
| Speed Range | 0-99 kmh |
| Rated Operating Current | 40mA |
| Max Operating Current | 100mA |
| Max output current to controller | 100mA |
| Operating Temperature | -20 to 70C |
| Comm Protocol | Analog (3-wire) |
| Includes | Rubber Spacers, Mounting Bracket; Function Control button; Waterproof wire harness; Thumb Throttle |
| Excludes | Brakes, controllers, throttle sold separately |
[/product_description]
